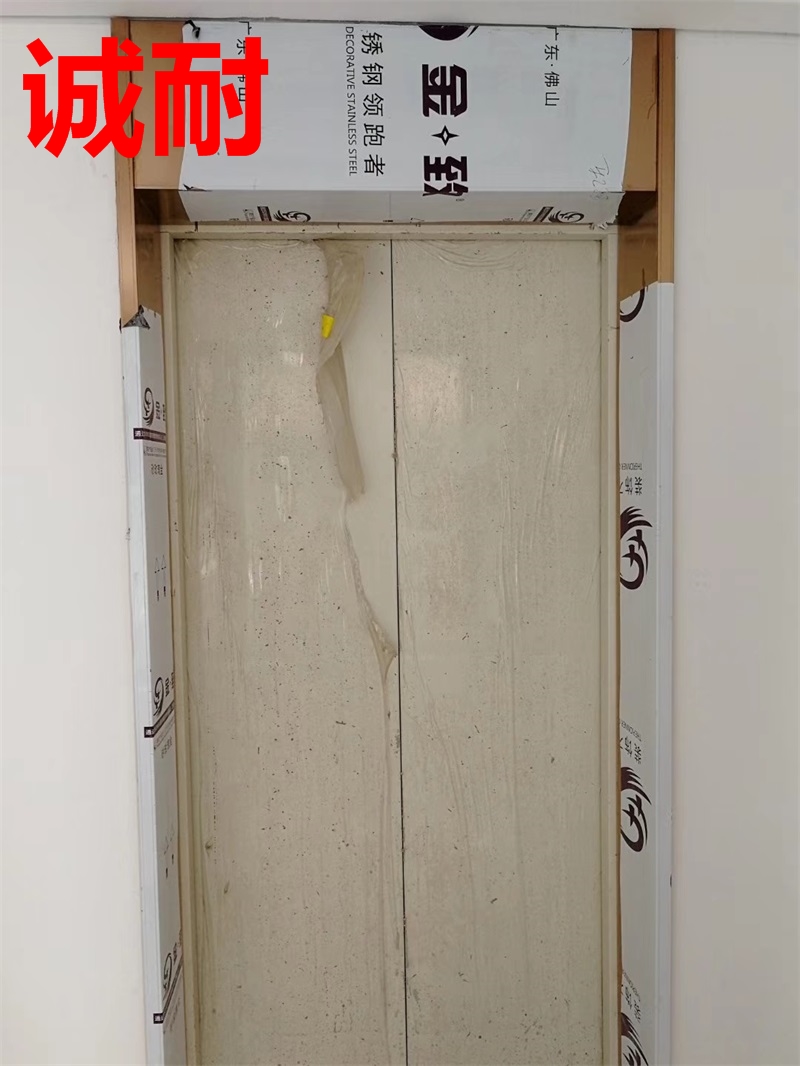

There are various products requiring deep processing in the stainless steel elevator door pocket decoration project, such as stainless steel, aluminum products, glass, etc. here, we analyze the problems of products requiring deep processing, and look for suitable installation nodes. We hope to provide a deeper reference for designers and installation guidance for the construction department. The installation process and nodes of Henan stainless steel elevator door pocket, the practice of direct butt joint door pocket, and the general precautions are as follows:

1、材料厚度**1.2厚（实际厚度不得小于1.08）。

1. Material thickness * * 1.2 thick (actual thickness shall not be less than 1.08).

2、注意用竖料来收口门头横料。

2. Pay attention to use vertical materials to close the horizontal materials of the door head.

3、注意制作基层一定要小于门套包边尺寸5mm左右，**足够的空间安装和打胶。

3. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, * * enough space for installation and gluing.

4、门头板宽度要略小于竖料宽度1-2毫米，收口才美观。

4. The width of the door head plate should be slightly less than the vertical material width by 1-2mm, and the closing is beautiful.

5、一般门头板和立面包板对接处的阴角处不建议用胶水收口，这样既美观又能检验门套安装质量。

5. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is both beautiful and can test the installation quality of the door pocket.

b：普通的45°拼接门套做法，常规注意事项如下：

b: General precautions for common 45 ° splicing door pocket are as follows:

1、材料厚度**1.2厚（实际厚度不得小于1.08）。注意对角处不能有错位，焊接点一定要处理在隐蔽位置。

1. Material thickness * * 1.2 thick (actual thickness shall not be less than 1.08). Note that there shall be no dislocation at the diagonal, and the welding points must be treated in the concealed position.

2、注意制作基层一定要小于门套包边尺寸5mm左右，**足够的空间安装和打胶。

2. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, * * enough space for installation and gluing.

3、一般门头板和立面包板对接处的阴角处不建议用胶水收口，这样既美观又能检验门套安装质量。

3. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is both beautiful and can test the installation quality of the door pocket.

安装质量粗劣，阴角打胶遮盖瑕疵，不建议使用

The installation quality is poor, and the internal corners are glued to cover the defects. It is not recommended to use

c：常规止口门套做法如左下图，这类做法的弊端：

c: The practice of conventional seam door pocket is shown in the following figure on the left. The disadvantages of such practice are as follows:

1、基层不准确时很难卡上去；尺寸不可调节，对于门洞基层有变化时无法改动门套尺寸。

1. It is difficult to get stuck when the base course is inaccurate; The size cannot be adjusted, and the door pocket size cannot be changed when the door opening base is changed.

2、加工复杂，尺寸较大时运输会有变形风险。

2. When the processing is complex and the size is large, there will be deformation risk during transportation.
